Efficient Cassava Potato Starch Dewatering Equipment Rotary Drum Vacuum Filter Tapioca Dehydrator

商品の詳細:

起源の場所: 中国
ブランド名: ZY
証明: ISO
モデル番号: VM10

お支払配送条件:

最小注文数量: 1セット
パッケージの詳細: 簡単なパッキング
受渡し時間: 20-30日
支払条件: LC、T/T
供給の能力: 20set/月
ベストプライス 連絡先

詳細情報
材料: SS304 力: 4KW
容量: 2-8t/h 乾燥澱粉 保証: 1年
色: 銀色の白 電圧: 308V50Hz
効用: 澱粉脱水 名前: 甘いジャガイモ粉末用機械
該当する業界: 食品＆飲料工場 原材料: キャッサバ、ジャガイモ、サツマイモ
マシンマテリアル: ステンレス鋼 パッキング: 標準梱包
Brand name: ZY
ハイライト:

rotary drum vacuum filter tapioca dehydrator

,

cassava starch dewatering equipment

,

potato starch machine with warranty

製品の説明

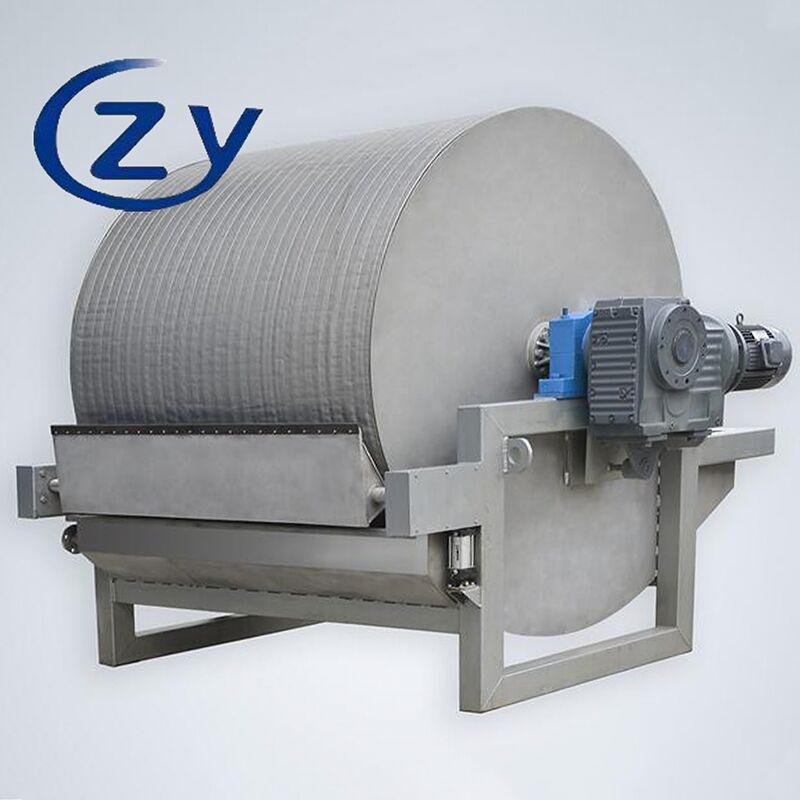

Efficient Cassava Potato Starch Dewatering Equipment Rotary Drum Vacuum Filter Tapioca Dehydrator


Description of sweet potato starch making machinery :



The vacuum drum filter press is composed of a rotating drum and a slurry-containing sump (for holding the slurry to be filtered). During operation, the drum rotates and dips into the sump; under the action of vacuum suction, the liquid phase and suspended solid particles in the slurry are adsorbed onto the pre-coated filter medium on the drum surface.
The liquid fraction is further drawn through the filter media by vacuum force, enters the internal collection cavity of the drum, and is then expelled through the dedicated discharge port. The solid particles retained on the outer surface of the drum form a solid cake, which is transported to the scraping assembly as the drum rotates. The scraper removes the solid cake together with a thin layer of the filter medium, ensuring a fresh filter surface is exposed for the subsequent filtration cycle—realizing continuous and stable filtration.
As one of the few industry suppliers that persist in the R&D and upgrading of filtration processes and technologies, ZY has established a leading position in the market through continuous innovation.


Efficient Cassava Potato Starch Dewatering Equipment Rotary Drum Vacuum Filter Tapioca Dehydrator 0


Working principle:


The starch dewatering machine operates via vacuum pump suction, which creates negative pressure within the drum to drive starch particles onto the drum’s filter cloth. As the drum maintains continuous low-speed rotation, starch accumulates into a controlled-thickness layer. The vacuum pump extracts excess water, and a precision scraper automatically removes the dehydrated starch—ensuring reliable, efficient starch dewatering.


Type of starch dewatering machine :


Type VF10 VF15 VF20
Filter area 10m2 15m2 20m2
Power 5.5kw 11kw 18.5kw
capacity 2ton/h 4t/h 5t/h







FAQ:

1. Are you the manufacture or trading company?

A: We are the manufacturer with professional produce experience on starch machine and design more than 13 years. We own both of Domestic and international sales department.

2. Where is your factory located?

A: Our factory is located in Zhengzhou city, Henan province, welcome to visit.

3. What is your guarantee of machine ?

A: usually our guarantee is 1 years.

4. Can you arrange your technicians to install the machine for us?

A: Yes,We will assign our engineers to go abroad for installing machines for our users.

5. The minimum handling capacity is ?

A: for cassava flour machine : the minimum capacity is per hour 1ton/h flour .

B: for cassava starch line : the minimum capacity is per hour 2ton starch .


Efficient Cassava Potato Starch Dewatering Equipment Rotary Drum Vacuum Filter Tapioca Dehydrator 1




Workshop of starch factory :



Efficient Cassava Potato Starch Dewatering Equipment Rotary Drum Vacuum Filter Tapioca Dehydrator 2
